The Column Job

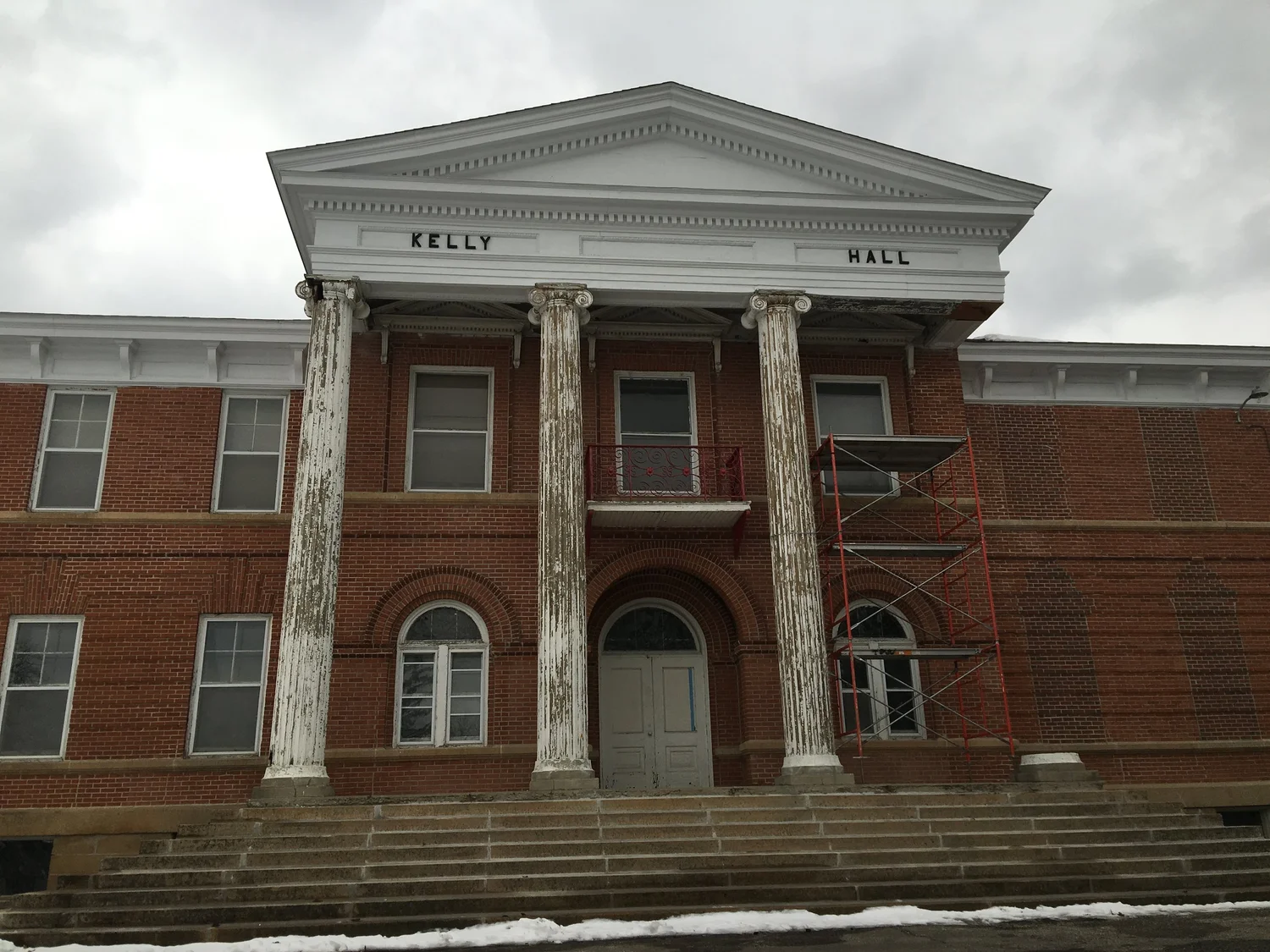

Building with the missing column
Concrete base where the old column once stood
No 1 cedar
Sample cuts (in redwood)
Piece of what I thought was a piece of the original column
Custom made knives that fit sample
Eventually had all 2 x 4s fluted (grooved)
Custom made grid to hold rings

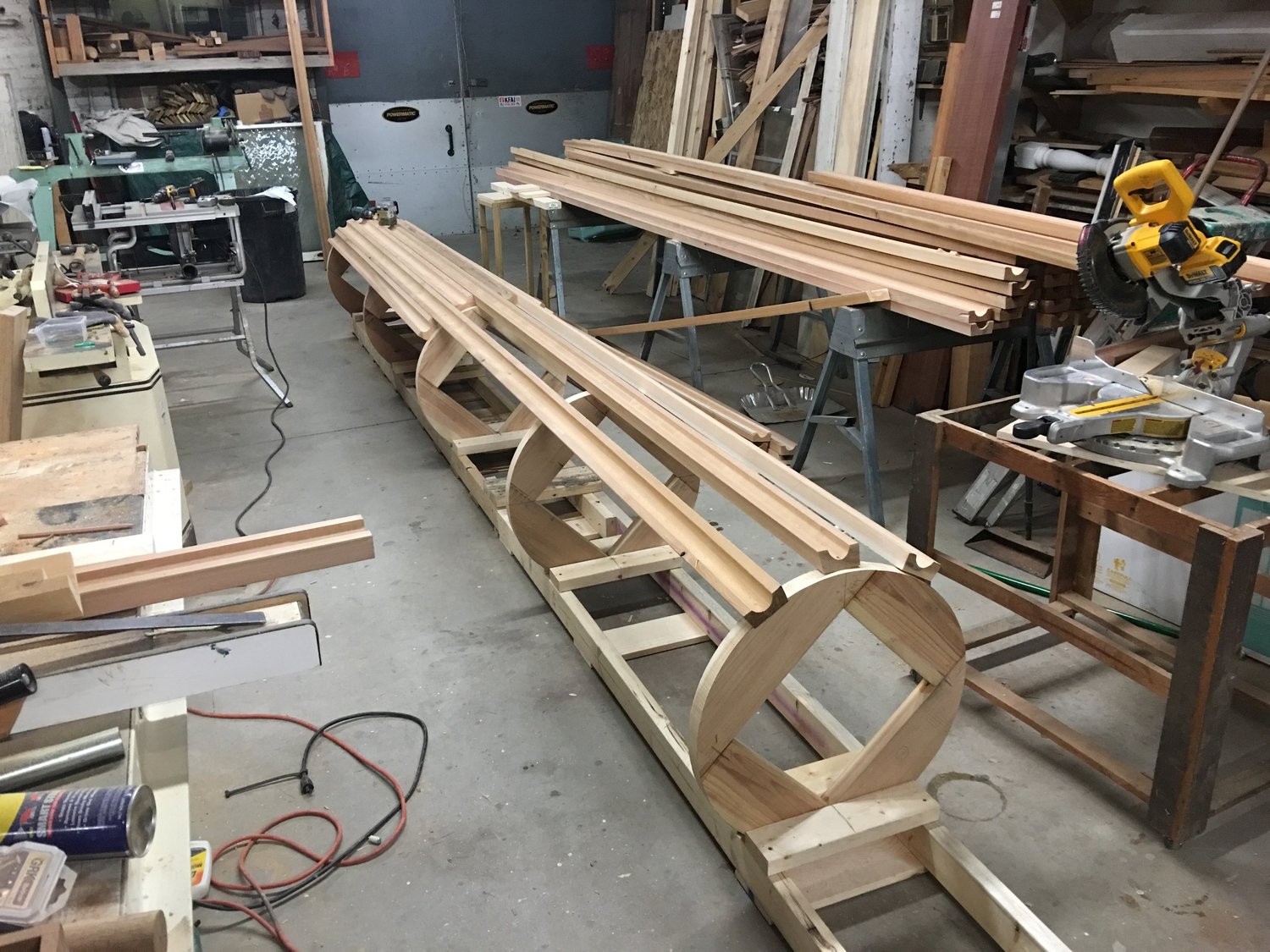

Screwing the fluted boards to rings and to each other
Rolled column over onto dollies to do other side
Closing it up, hoping for good fit of last boards
Column done
Turning top of column
Had to be expertly centered
Turned, ready to be tested on column
Real good fit
Carved "terminating" flutes
Study picture of Roman Ionic capital
Study picture
Study picture (took at least 100 of these from every angle)

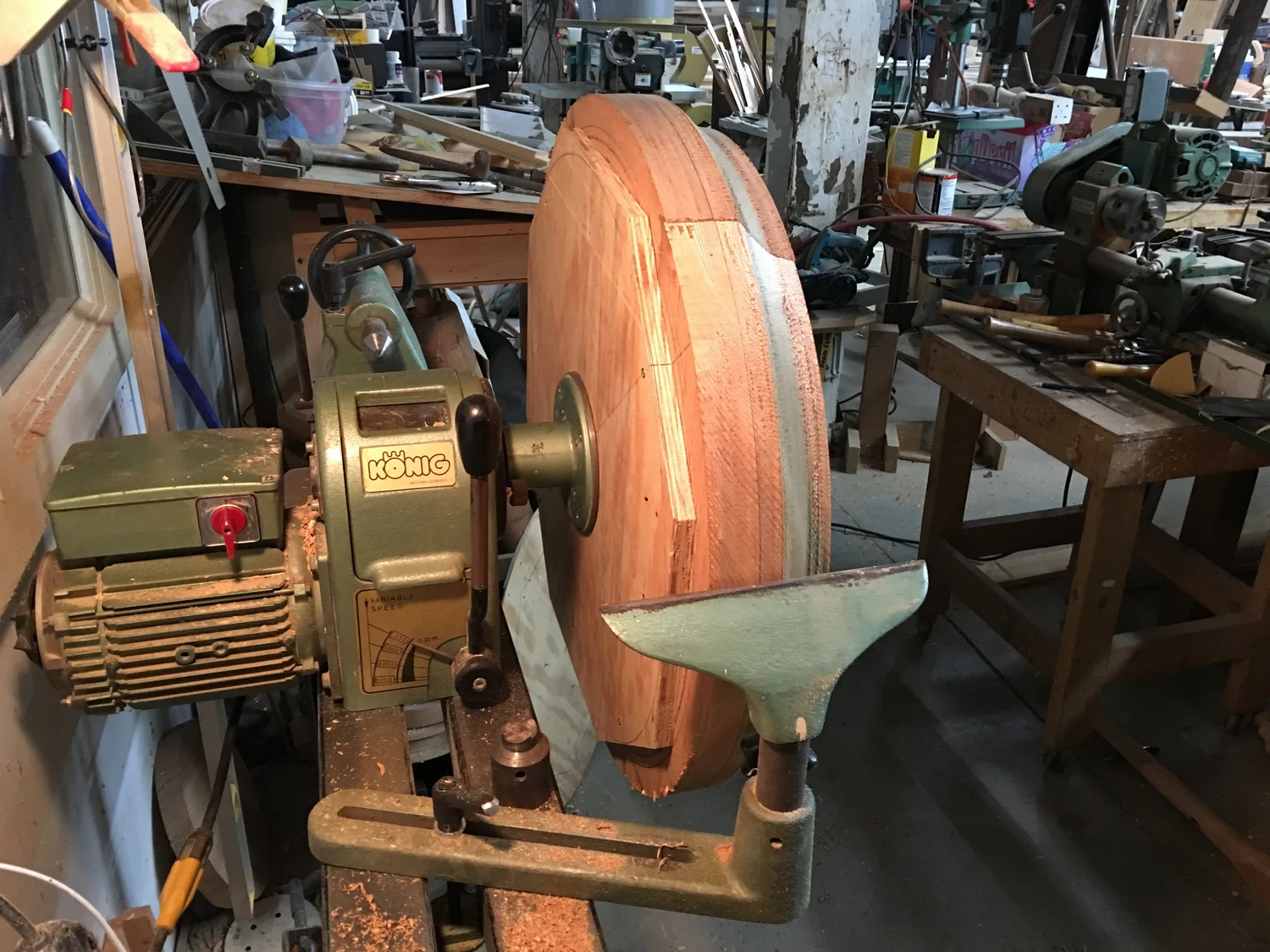

Turning Bell
Carved scroll
Turned bell to divide by 4

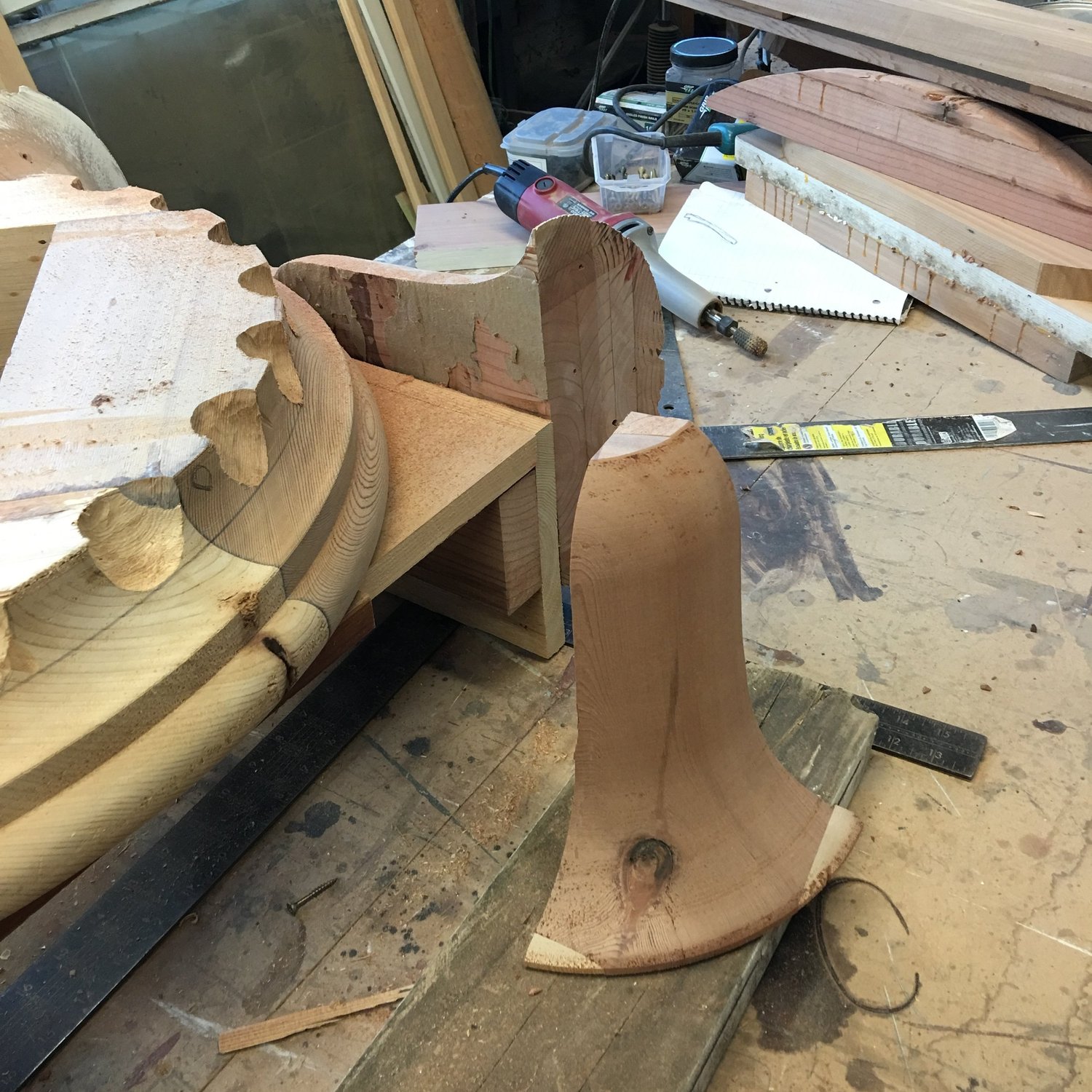

 A quarter of the bell
setting the quarter bells pieces in place
Quarter bell screwed into place. seam to be sanded flush

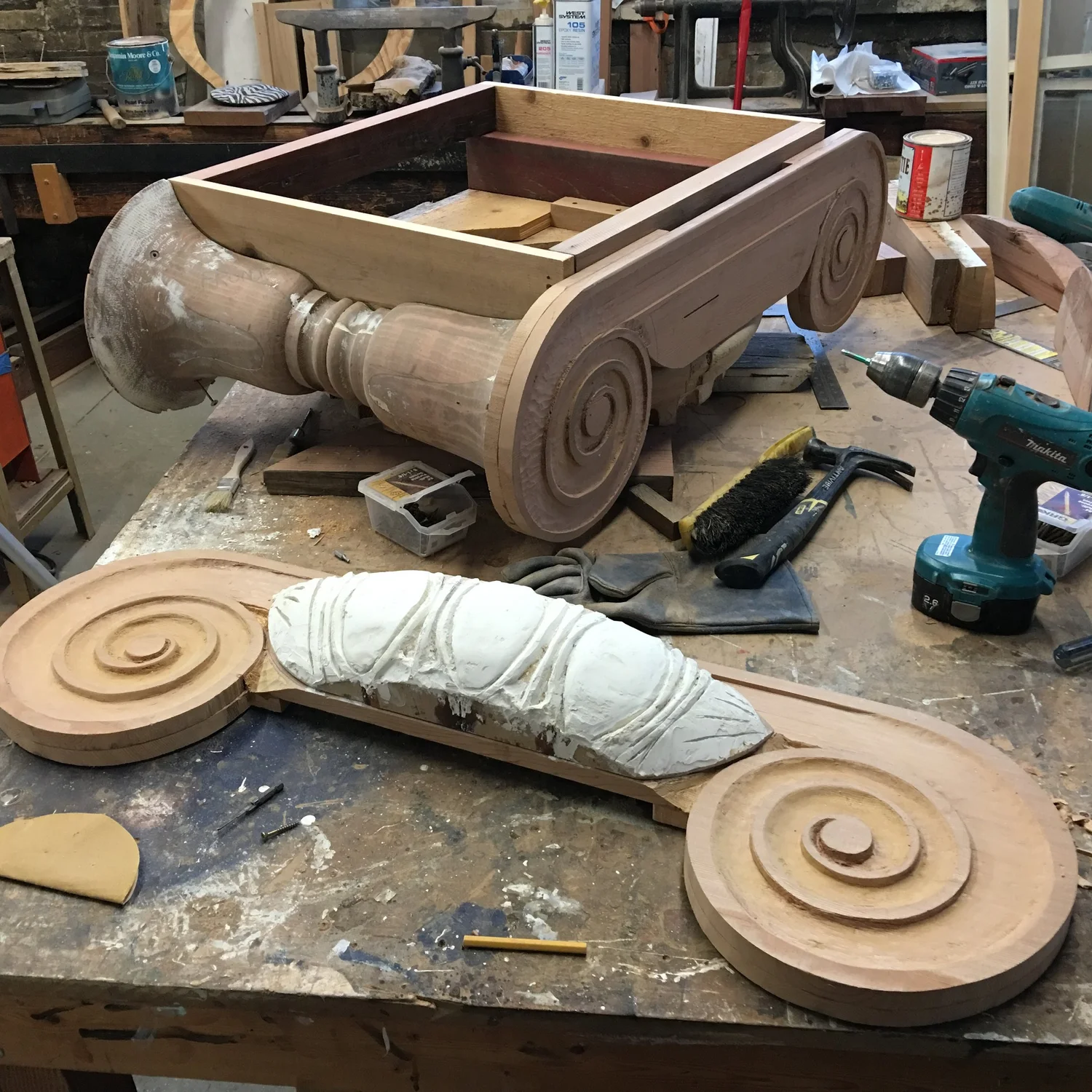

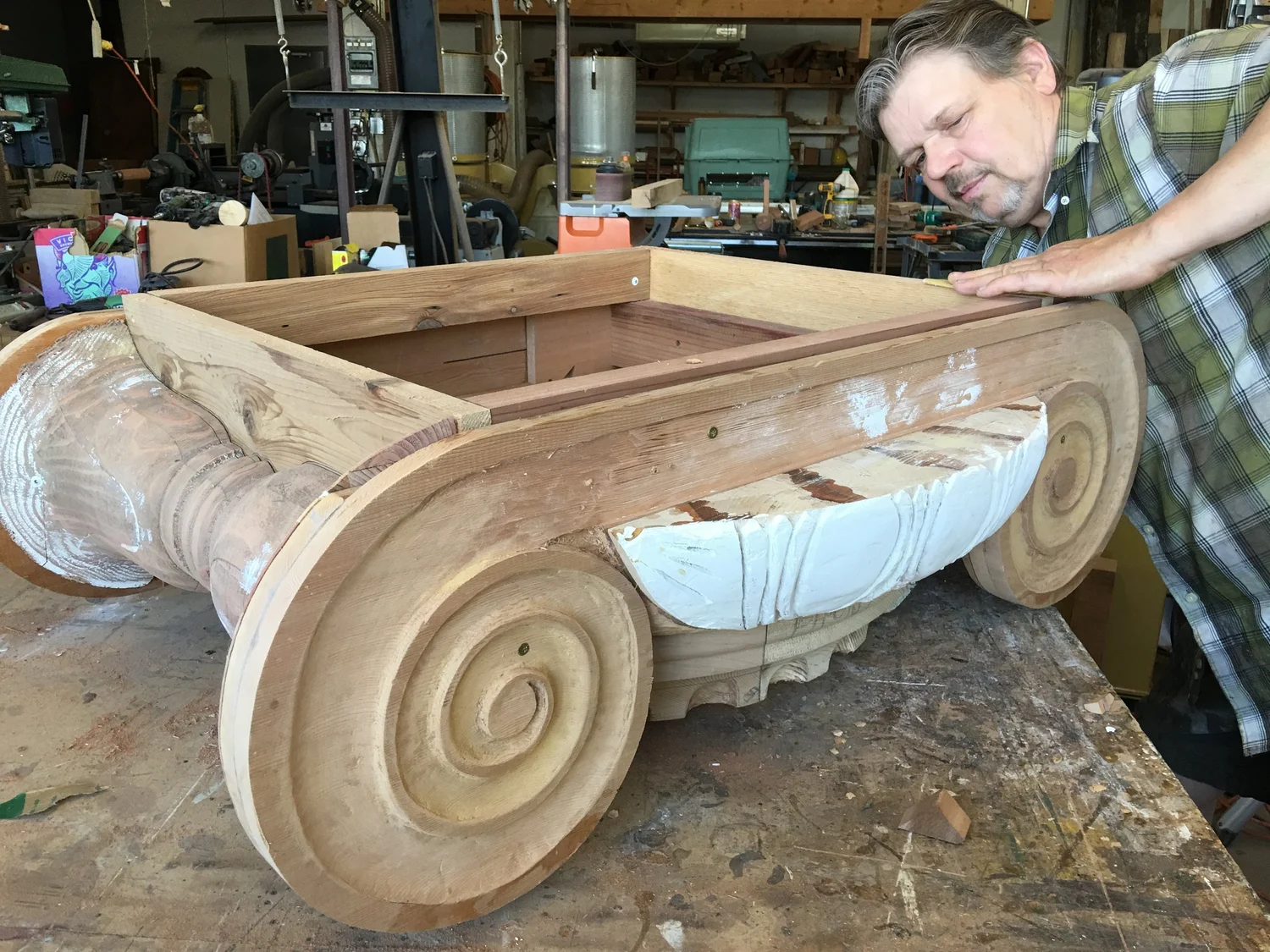

Capital put together
Column being loaded on nephews truck
Ready for the journey 75 miles away
Column was lifted into place using grid it was built on
column secured into infrastructure of roof
Needed scaffold to trouble shoot capital, but eventually got it in.
Happiest man in the world
